 Multicam DVR
|
|
PC/Windows Based DVR
Models: ASD8016F & ASD9016F |
Download
Brochure
(pdf 783KB)
|
|
 |
|
A PC based, multi-channel video surveillance system that utilizes the most advance digital video compression technologies to bring you the highest picture quality and video performance.
ASD8016F and ASD9016F can go up to 16 cameras connected and view live on a local monitor screen or thru TCP/IP network. Video can be recorded basing on specifiable schedules or motion detection. You can store video clips in HDD or any optical storage device by using Multicam Backup System. With virtually unlimited expansion capabilities, this system provides the ability to remotely monitor, control and manage intrusion, video, access control devices and more.
Features
- 640 X 480 recording and display resolution
- Adjustable Video Setting, recording for each camera
- Mpeg 4 /G-Mpeg4/ Wavelet compression technology
- Motion detection, around the clock, and pre-schedule recording mode
- Alarm to E-mail (Jpeg or text message)
- Embedded I/O devices control
- Embedded PTZ control panel
- Build-in web server
- Digital watermark authentication
- Multi level passwords protection
- Full screen display
- Support dynamic IP address
- Video lost detection
- On screen video lost message
- Support dual screen display
- Video de-interlace filter
- Video auto gain controller
- Video scaling filter
- Mini-View display
- AVI repair utility
- Unattended and Missing object detection
- Object tracking & Zooming
- Object Index
- E-Map
- POS Data Sender
- SMS Alerts
- Remote view Via 3G/GPRS Mobile Phone/MS,SS Smart Phone
|

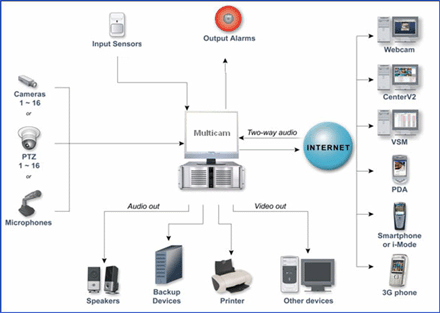

System Overview (click for larger view) |
 |
|

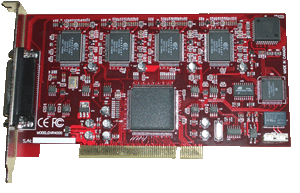

ASD Digital Video Capture Card
(click for larger view) |
|
|
Functions & Specifications |
| MODEL |
ASD8016F / ASD9016F |
| Input Type |
Video - BNC Audio - RCA |
| Video Inputs |
16 Channels |
| Audio Inputs |
4 Channels |
| Recording Speed |
100 FPS(PAL) / 200 FPS(PAL)
8 series / 9 series
|
| Display Speed |
100 FPS (PAL) |
| Video Resolution |
320x240 / 640x480 / 640x240 |
| Compression Format |
Mpeg4, Geo-Mpeg4, Wavelet |
| Recording Mode |
Continuous, Schedule and
Motion Detection on each Camera
|
| Alarm Alert Function |
Motion Trigger / I/O / Video Lost. POS Event |
| Log File |
Alarm Log / User Log / Error Log /POS
Object Counter (bomb threat detection)
|
| Multi-Task Capability |
Recording / Playback /
Remote motoring all at same time
|
| PTZ Support |
Support major PTZ Camera protocol via RS485 |
| I/O Support |
Optional with I/O Card |
| Networking Function |
LAN / Internet on TCP/IP |
| Remote View |
IE with Active X, JAVA. 3G / MS mobile.
Symbian OS phone
|
| Watermark |
Digital Watermark on recorded Video |
| Security Features |
4 levels of password protection |
PC Specification: Intel/AMD 2.4Ghz & above. Min 256MB RAM/64MB AGP Graphical card. Windows XP OS. IDE/SATA harddisk. 10/100/1000MB LAN interface. ATX tower casing.
|
|
|
 Design and specifications are subject to change without notice.
|
|
|
|
|
|
|
|
|
|
